Description
Our premium 50 side bow roller chain sets the bar in terms of performance, strength, and operation life! 50 side bow roller chain is a unique 5/8″ pitch ANSI chain designed to operate around radial curves. This #50 side bow chain is manufactured using precision high-grade carbon steel components that have been heat-treated and shot-peened. The result is a high-strength 50 side flexing chain with superior performance, working life, and a 5,460lb tensile strength. Additionally, 50 side bow roller chains can operate on standard 50 sprockets and are available in lengths of 10ft, 50, 100ft, or custom lengths. We also supply curved 50 chain guide tracks and sprockets! For additional information or to get a quote on our superior 50 side bow roller chain, contact our customer service team, and we will gladly assist you!

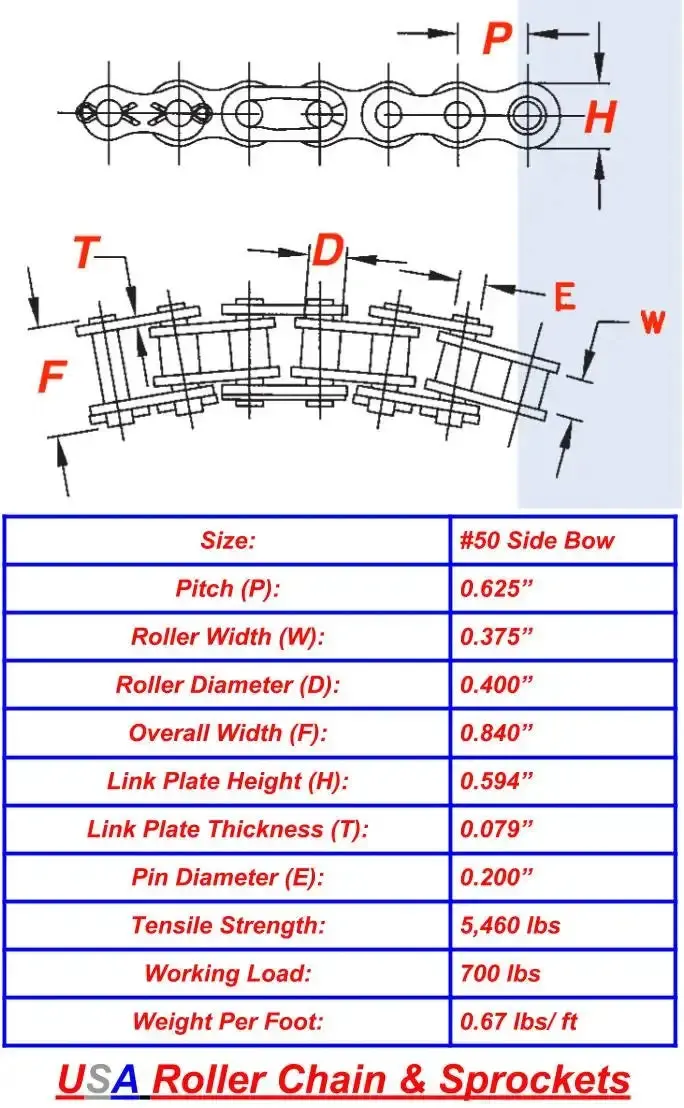

50 Side Bow Chain Dimensions
- Part #: 50SB
- Pitch (P): 0.625″
- Roller Width (W): 0.375″
- Roller Diameter (D): 0.400″
- Dimension (A): 0.420″
- Dimension (B): 0.475″
- Plate Height (H): 0.594″
- Plate Thickness (T): 0.079″
- Pin Diameter (E): 0.200″
- Tensile Strength: 5,460 LBS
- Working Load: 700 LBS
- Weight: 0.67 LBS/ FT
