Description

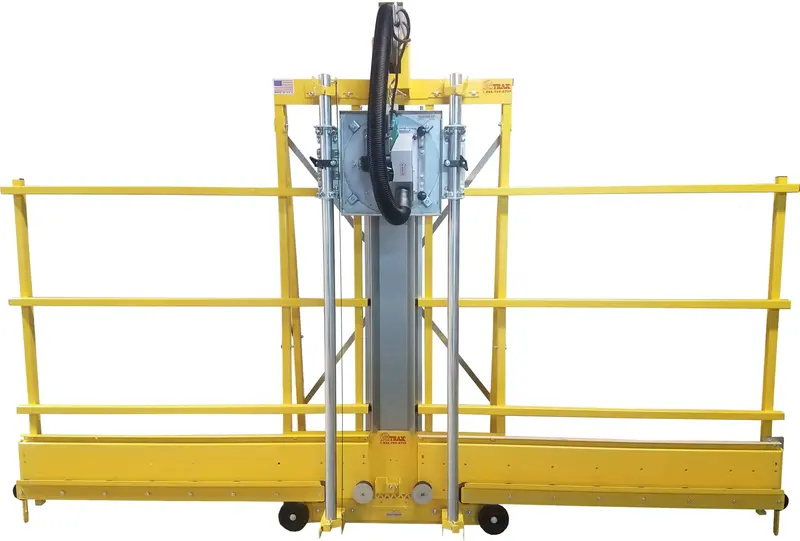

Wheels and a folding stand provide portability for your compact panel saw and allow you to move it around your shop as you see fit.
- 3 ¼ Hp, 15 amp industrial, Milwaukee Tool motor.
- Folding Stand.
- Wheels.
- Zinc plated 1 ¾” steel guide tubes.
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards.
SPECIFICATIONS
| Weight | 189 lbs |
|---|---|
| Dimensions | 60 x 11 x 70in |
| Max. Crosscut |
50″/1270mm |
| Max. Rip Cut |
96″/2450mm |
| Cut Depth |
1 ¾”/45mm |
| Cut Accuracy |
1/32″/.8mm |
| Frame Length |
60″/ 525mm |
| Saw Blade Diameter |
8″/210mm |
| Saw Blade Bore Size |
5/8″ |
| Daily Usage |
1-3 Hours |
| Rollers |
8 |
| Motor volt and amperage |
15 amp, 120V, 7.5 amps, 220V |
| Motor Manufacturer |
Milwaukee Tool |
| Machine Footprint |
15sqft |
| Machine Length |
60″/1525mm |
| Machine Height |
75″/1900mm |
| Machine Width with stand attached |
36″/915mm |
| Circular Saw Motor Revolutions Per Minute (RPM) |
5,800 RPM |
| Country of Origin |
USA |
