Description
MAXIMIZING LAYOUT EFFICIENCY WITH REINFORCED RIGIDITY AND INTEGRATED DATA

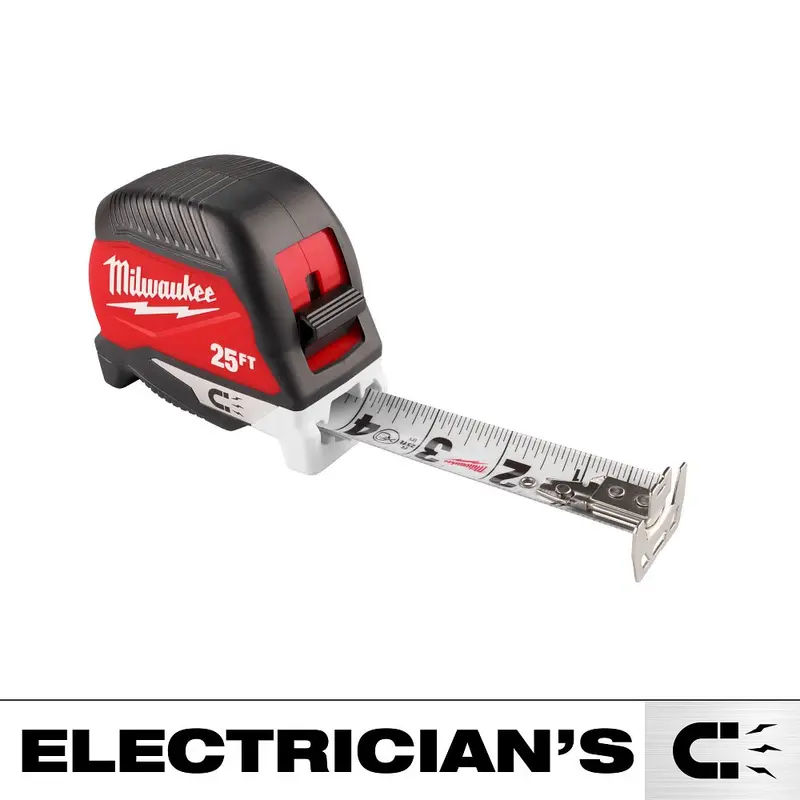

The Milwaukee 48-22-1027M represents a significant advancement in measuring technology, specifically optimized for the mechanical demands of electrical contractors. By engineering a blade with 12 feet of standout and a 15-foot reach, this tool effectively solves the issue of blade rollover during solo measurements of overhead conduit runs. The inclusion of a high-strength magnetic hook ensures a positive connection to ferrous materials like EMT and steel studs, while the double-sided printing includes critical reference data—conduit bending multipliers and 3-phase layout tables—directly on the blade. This integration reduces downtime and increases accuracy during complex installations, providing a high-performance ROI for professional tradesmen.
- / 12-Foot Standout & 15-Foot Reach: Enables solo measurements across long spans with minimal blade deflection or rollover.
- / Integrated Reference Tables: Features conduit bending multipliers and 3-phase layout guides for immediate on-site calculations without external charts.
- / High-Strength Magnetic Hook: Securely grips EMT, conduit, and steel studs from the top or side for hands-free measuring.
- / Anti-Tear Blade Coating: Reinforces the first 6 inches of the blade with a double-sided coating to prevent the most common point of failure.
- / Architectural Scale: Provides 2-sided printing and specific scaling for reading blueprints and technical drawings with ease.
TECHNICAL SPECIFICATIONS
| Blade Length | 25 ft |
| Standout | 12 ft |
| Reach | 15 ft |
| Hook Type | Large Magnetic (Top & Side) |
| Reference Guides | Conduit Bending Multiplier, 3-Phase Layout |
| Blade Coating | Double-Sided Anti-Tear (First 6″) |
| Body Material | Reinforced Impact Resistant |
WHAT’S IN THE BOX
(1) 25ft Electrician’s Magnetic Tape Measure (48-22-1027M)
